Why an Architectural Fiberglass Sculpture Wins for Lightweight Building Art

An architectural fiberglass sculpture is a sculptural artwork made from glass-reinforced composite, specified for buildings and public spaces where weight, form and cost must balance carefully. Fiberglass allows sweeping, complex shapes that would be prohibitively expensive in metal, at a fraction of the structural load, which makes it an intelligent choice for facade elements, rooftop works and large-scale forms where a heavier material would demand costly foundations. It is not a substitute material; it is a design material with its own rules.

Architects and clients sometimes hesitate when they hear the word fiberglass, and the hesitation is fair, because cheap composite work has earned the material a poor reputation in some markets. The truth is that the failures come from thin laminates, poor surface systems and unskilled fabrication, not from the material itself. When a composite sculpture is engineered with a proper structural lay-up, a quality surface finish and a realistic maintenance plan, it can perform for decades in demanding outdoor conditions.

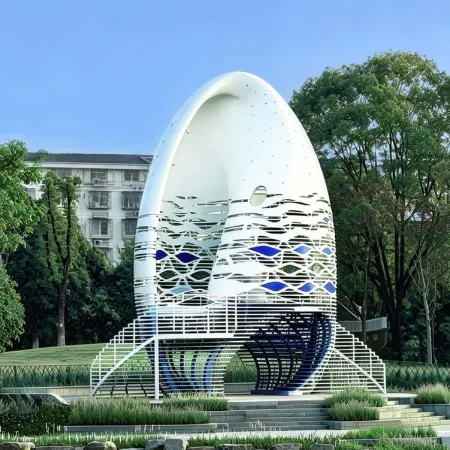

At Yifeng Sculpture Studio we evaluate material honestly for every project, and fiberglass is part of our regular toolkit. The same four-step route of consultation, concept development, fabrication and installation that governs our metal work, described on our services overview, applies to composite commissions, with completed projects shown in our project archive. The structural discipline that allows a 12.8 m interactive landmark such as Hello Conch to stand safely in public space is the same discipline we bring to large lightweight composite forms.

Where an Architectural Fiberglass Sculpture Performs Best

Composite sculpture earns its place where weight is the enemy. A rooftop artwork avoids expensive structural reinforcement when it is built light. A projecting facade form can reach further from the building when it does not drag the structure down. A large free-form sculpture in a public plaza can be fabricated in one continuous piece with complex curves that would require hundreds of welded metal panels. In each of these cases, the design freedom that fiberglass allows is the real product.

• Rooftop and elevated positions: lightweight forms reduce the structural cost of carrying art at height.
• Complex organic geometry: smooth double-curved surfaces are molded rather than fabricated from flat stock.
• Large forms on constrained budgets: the mold-based process rewards repetition and scale in ways metal fabrication cannot match.
• Color-rich surfaces: gel coats and modern polyurethane systems deliver saturated, uniform color across big surfaces.

The Craft Behind a Quality Fiberglass Sculpture

The quality of an architectural fiberglass sculpture is decided long before the resin is mixed. It begins with a precise master model, usually milled or printed from the approved 3D design, from which production molds are taken. The laminate schedule is then engineered for the loads the piece will actually carry, with reinforcement added at fixing points and openings, and the surface system is chosen for the climate. Skilled laminators build the part layer by layer, and the finished surface is prepared and painted to automotive-grade standards where color is required.

Structural engineering for composite work is different from metal. Fiberglass is anisotropic: its strength depends on the direction of the fibers, so the lay-up must be designed by someone who understands the material rather than copied from a metal drawing. Our engineers calculate the laminate for wind, snow and seismic loads as appropriate, and we document the design so the project's structural consultant can verify it. Hidden steel or aluminum armatures are used where point loads demand them, and those interfaces are engineered with the same care as the composite shell itself.

Surface, Color and Longevity

The most common worry about an architectural fiberglass sculpture is that it will fade, chalk or crack within a few years. In our experience these problems trace back to three causes: ultraviolet-unstable resins, thin gel coats, and water getting into the laminate through unsealed edges or fixings. Each has a known engineering answer. We specify UV-stable systems, build sufficient surface thickness, and detail every edge, hole and fixing to keep water out of the composite structure.

For large architectural pieces we prefer a painted polyurethane finish over a raw gel coat when a precise, lasting color is required, because modern two-pack polyurethane systems offer outstanding color stability and repairability. A scratched or damaged section can be locally repaired and refinished without replacing the artwork, which keeps the whole-life cost predictable for the building owner.

Working a Composite Sculpture into Your Project

A composite sculpture should enter the project at the same point as any other architectural artwork: early enough to influence the structure rather than fight it. We review the fixing points, the access strategy and the wind environment at concept stage, and we confirm the fire performance expectations of the local authority, because composite materials require appropriate fire-rated specifications in some building applications. Addressing these requirements up front keeps approvals smooth.

We also believe in honest material advice. If a project is better served by stainless steel or aluminum, we say so, because the cost of a wrong material choice shows up over decades rather than at approval. When fiberglass is the right answer, we explain exactly why and what the maintenance commitment will be, so the client chooses the material with open eyes.

Combining Composite with Structure and Light

Most large composite sculptures are not pure fiberglass; they are hybrid structures in which an internal steel or aluminum armature carries the primary loads and the composite shell provides the form. This is the right way to build at scale, because it lets the engineer concentrate material where forces are highest while the composite sections stay light and moldable. We design the armature and the shell together so fixing points, access openings and lifting lugs land exactly where the fabrication and installation teams need them, and we control tolerances between sections so the assembled piece reads as one continuous surface.

Light opens another territory for composite work. Because the material can be molded into hollow, translucent or light-guiding forms, it is an excellent partner for integrated illumination, whether the piece glows from within, carries light along its edges or frames a backlit panel. Waterproof compartments, accessible drivers and maintainable lamp modules are engineered into the design rather than bolted on later, and the night-time appearance is tested with the same seriousness as the daylight form.

Transport and installation deserve their own planning. A composite sculpture can be large yet deceptively light, which makes it vulnerable to mishandling: it must travel on purpose-built cradles, be lifted at engineered points, and be joined on site with procedures that protect the finished surface. Our crews supervise the installation and hand over a care guide that tells the facilities team exactly how to clean and protect the artwork for the years ahead.

Building regulations are another reason to involve a fabrication studio early. Composite materials intended for building envelopes and high-traffic public areas must meet the fire-performance expectations of the local authority, and the specification depends on the position, the surrounding materials and the escape strategy of the building. We document the material's performance data, confirm the applicable requirements with the project team and select systems that satisfy them, so the artwork does not become an approval problem at the last minute.

Sustainability is an increasingly important part of the material conversation, and composite deserves an honest assessment here too. A well-engineered composite sculpture is designed to last for decades, which is the most meaningful environmental contribution any building element can make, because the energy invested in fabrication is amortized over a very long service life. Where end-of-life matters, we discuss the options with the client and document the materials used, so the eventual recycling or disposal path is not a mystery for the next generation of owners.

How a Composite Sculpture Moves from Model to Site

1. Scale model approval and mold production
2. Lamination and curing under controlled workshop conditions
3. Surface finishing, color application and UV protection
4. Structural check, purpose-built crating and supervised installation

Common Questions About an Architectural Fiberglass Sculpture

Every material has a territory, and composite's territory is complex form at scale without the burden of weight. An architectural fiberglass sculpture engineered with discipline, finished with quality systems and maintained on a realistic schedule will serve a building for decades, and it will do so at a weight and cost that open up design possibilities metal cannot reach. The material deserves to be judged on engineering, not on cheap memories of it.

If your project calls for a sweeping form that must stay light on the structure, or a large sculptural element with a demanding budget, send us your concept and site conditions. Our studio will advise whether composite is the right route for your architectural fiberglass sculpture and what it will take to make it last. Contact us to begin.
