What a Kinetic Sculpture Manufacturer Must Prove Before It Moves

A kinetic sculpture manufacturer is building something that must work every day for decades in public weather, and the moment it stops, the artwork becomes a stationary object with an awkward secret. Movement changes the engineering brief completely: bearings become consumable components, wind becomes a design input rather than a background concern and every gram of imbalance turns into wear.

Yifeng Sculpture Studio has produced kinetic and wind-driven works since 2003, delivering more than 3000 projects to 23 countries, including pieces that turn, sway and respond to the air around them. A kinetic sculpture manufacturer is judged on the second year as much as the first, because that is when a poorly engineered mechanism reveals itself through noise, stiffness or a seized bearing.

Balance, Mass and the Loads That Never Sleep

Kinetic work begins with balance. A rotating element must be balanced statically and dynamically, because an unbalanced mass produces a cyclic load that grows with speed and eventually finds the weakest point in the assembly. In a wind-driven piece the speed is never constant, so the imbalance appears as vibration, noise and accelerated bearing wear rather than as an obvious fault, and by the time it is noticed the damage is done.

Wind also produces loads that are far higher than intuition suggests. A moving surface changes its angle to the flow, so the forces on a rotating element vary continuously and can peak well above the static wind load. A kinetic sculpture manufacturer should analyse the structure for those dynamic conditions, design the bearings and the shaft for the resulting loads and provide a way for the work to shed excess energy, whether through feathering, a slip clutch or a governed speed, when a storm arrives.

Testing a Movement Before the Public Sees It

A kinetic work should be tested through far more cycles than it will see in its first months. Bench testing the mechanism before assembly, running the completed movement through continuous cycles and monitoring temperature, noise and current draw all reveal problems that a visual inspection cannot. If a bearing runs hot or a drive draws more current than expected, the fault is present and will only get worse.

Commissioning then verifies the behaviour in the real world. The manufacturer should confirm the limits of movement, test the behaviour in the strongest wind the site has seen, check that the fail-safe state engages correctly when power or a sensor is lost and observe how the public interacts with a moving object. A kinetic sculpture manufacturer who insists on this testing is protecting the client from the most expensive outcome in kinetic art, which is a beautiful mechanism that nobody can keep running.

• Static and dynamic balance: components balanced before assembly, because imbalance becomes vibration and vibration becomes wear.
• Bench testing: the mechanism run on the bench before installation, so a fault is found in the workshop rather than at the opening.
• Cycle counting: continuous running to accumulate wear in a week rather than discovering it over a year in public.
• Monitored parameters: temperature, noise and current draw recorded, because they reveal a developing problem before it becomes visible.
• Fail-safe behaviour: the work parks safely and quietly when power, a sensor or a control signal is lost.

Maintenance: The Contract That Keeps It Moving

Kinetic sculpture has a maintenance requirement, and the honest manufacturer states it clearly at the proposal stage. Bearings have service lives, lubrication has intervals, drives and controllers have finite lives and seals need inspection. None of that is a reason to avoid movement; it is a reason to design for service, with components that can be reached and replaced by a competent technician rather than a specialist team with a crane.

Access decides whether the maintenance is realistic. If a bearing sits inside a sealed volume, every service becomes a major operation; if it sits behind a bolted access panel at a sensible height, a service is an hour's work. A kinetic sculpture manufacturer should show the access strategy on the drawings, name the intervals and list the spare parts the owner should hold, so that the work can keep moving for decades rather than until the first component fails.

Wind-Driven, Motor-Driven and Interactive Movement

Not all movement is the same, and the choice of drive shapes the engineering. Wind-driven works need no power, are silent in operation and behave unpredictably, which is part of their charm, but they depend entirely on good bearing design and on a mechanism that can survive a storm. Motor-driven works are controllable, programmable and repeatable, and they carry the additional duties of power supply, control logic and electrical protection.

Interactive movement adds a third layer, because the public becomes part of the control system. Sensors must be robust, the response must be legible and the mechanism must limit force so that nobody can be hurt by a movement they triggered. Whichever route the project takes, the underlying discipline is the same: understand the loads, prove the mechanism, protect the electrics, design for service and hand the owner a plan that keeps the work in motion.

1. Choose the drive deliberately: wind, motor or interaction each bring different duties, and the site and the concept should decide.
2. Size for the storm: design for the strongest wind the site can produce, with a way to shed energy rather than absorb it.
3. Protect the electrics: sealed enclosures, surge protection and drainage, with drivers placed where they can be reached.
4. Name the intervals: lubrication, inspection and bearing replacement set out with the spares the owner should keep in stock.
5. Train the operator: daily checks and first-line fault finding so a small issue never becomes a stopped artwork.

Noise, Vibration and the Neighbours

Kinetic work makes sound, and in a residential or office setting that sound becomes a planning issue. Airflow over moving elements creates a low hum, bearings transmit vibration into the structure and a large rotating mass can produce a rhythmic beat that carries further than expected. None of that is a reason to abandon movement, but it should be estimated and discussed before the work is installed rather than discovered by the neighbours afterwards.

Managing it is largely a matter of design. Balanced components remove the vibration that causes most of the noise; good bearings run quietly; aerodynamic profiling reduces the turbulence that creates the hum; and a governed speed keeps the work from accelerating to the point where sound becomes intrusive. Where the site is sensitive, the manufacturer can test the mechanism and measure its output before delivery. A kinetic sculpture manufacturer who raises noise early is protecting the client from complaints that are difficult to resolve later.

Frequently Asked Questions About a Kinetic Sculpture Manufacturer

A kinetic sculpture manufacturer is promising movement over decades, which is a harder promise than it sounds. The balance has to be right, the bearings have to be sealed and serviceable, the structure has to accept the wind and the electrics have to survive the weather. Prove those four things before the public arrives and the work will still be turning long after the opening speeches are forgotten.

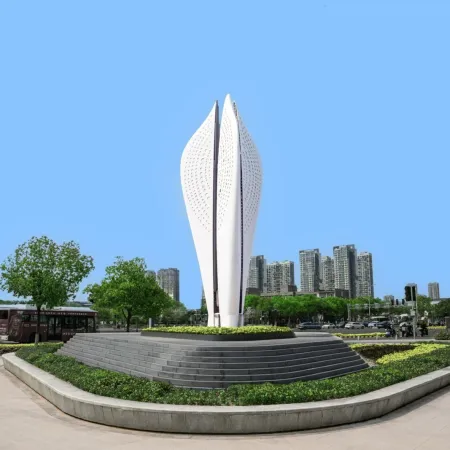

Kinetic and wind-driven works appear throughout our project gallery, the full delivery process is set out in the services overview, and Sailing Competition shows how a nine-metre wind-driven work had to be engineered to keep moving.

Tell us how the work should move and where it will stand, and we will tell you what it takes to keep it moving. A kinetic sculpture manufacturer who shows you the test records and the maintenance plan is one whose movement will outlast the novelty.
