What Makes a Kinetic Stainless Steel Sculpture Safe and Silent
A kinetic stainless steel sculpture adds movement to a site, and movement is where engineering stops being invisible. A static work only has to stand up to wind; a moving work has to stand up to wind while turning, balancing, wearing and occasionally being pushed by a curious member of the public. The difference shows up in the bearings, the counterweights, the fail safe behaviour and the maintenance plan, and those four things decide whether the piece delights the city for twenty years or squeaks and seizes within one.
Yifeng Sculpture Studio has built kinetic and interactive stainless work since 2003 among more than 3000 delivered pieces in 23 countries, including large wind driven installations, and the lessons are consistent. Movement must be designed into the structure from the first sketch, not added to a static form afterwards. A rotating element changes the load paths, the fatigue regime and the maintenance schedule, and a client who understands that from the start will receive a work that runs quietly for decades.
Bearings, Balance and the Wind That Drives It
Bearings are the heart of any kinetic stainless steel sculpture, and they are usually the first thing to fail if they are chosen badly. A sealed, maintenance friendly bearing arrangement suited to the load and the speed of rotation will run for years, while an open bearing exposed to rain and grit will grind itself apart in a season. We specify bearings with adequate load capacity and a defined service interval, and we design the housing so the bearing can be reached and replaced without dismantling the artwork.
Balance is the second essential. A moving element that is out of balance will wear its bearings, vibrate, produce noise and eventually fatigue the structure at its weakest point. Balancing is done statically first and then checked dynamically, with the mass distribution adjusted by discreet counterweights concealed within the form. Wind is the engine, so the sail area of each element is designed together with the bearings and the structure: enough area to move in a light breeze, but with a geometry and a stop arrangement that prevents damage in a storm.
| System | Design requirement | Failure if ignored |
|---|---|---|
| Bearings | Sealed, load rated, replaceable in service | Seizure, noise and accelerated wear |
| Balance | Static and dynamic balancing of every moving part | Vibration, fatigue and premature bearing failure |
| Sail area | Tuned to the local wind regime and the structure | Either a dead sculpture or a damaged one |
| Stops and limits | Mechanical limits that prevent over travel | Elements colliding or locking in high wind |
| Access | Serviceable joints reachable without dismantling | Small faults becoming major interventions |
Safety, Silence and Public Contact
Safety in a kinetic work is largely a matter of preventing access to anything that could pinch, crush or trap. Moving parts should be enclosed or separated from reach, gaps should be sized so that fingers and clothing cannot enter, and the speed and force of movement should be limited by the design of the drive rather than by a warning sign. Where the public can reach a moving element, the geometry must be forgiving, and the finish should avoid sharp edges that would injure a hand that brushes against the surface.
Silence is a design objective that clients rarely ask for and always appreciate. Noise in a kinetic sculpture usually comes from bearing play, from a loose connection, from a resonant panel or from elements striking their stops. Each of these is preventable: tight tolerances in the bearing housing, positive locking on connections, stiffening to move natural frequencies away from the excitation of the wind, and damped stops that absorb the impact instead of ringing. A quiet kinetic sculpture reads as quality, while a noisy one becomes a complaint.
- Enclose the mechanism: keep pinch points, gears and linkages out of reach of hands and clothing.
- Limit the forces: design the drive so the moving element cannot generate an injurious load even if obstructed.
- Round the edges: every surface the public might touch finished without a sharp arris.
- Damp the stops: resilient buffers that absorb movement at the end of travel instead of clashing.
- Tune out resonance: stiffening and mass placement so panels do not hum or drum in the wind.
Four Rules for Moving Sculpture
Design the movement into the structure from the first sketch
Choose bearings for service life and make them reachable
Balance every element, then check it dynamically
Plan the maintenance schedule before installation
Maintaining a Kinetic Stainless Steel Sculpture
A moving sculpture needs a maintenance regime, and the owner should receive it as a written schedule rather than as an afterthought. The routine usually includes a visual inspection of the moving elements, a check of the bearing play and the fasteners, cleaning of the surfaces and lubrication where the design requires it. The interval depends on the environment: a coastal site with salt in the air will need more frequent attention than an inland one, and a site with heavy public contact will need the fasteners checked more often.
The owner's team should also be trained to recognise the early signs of trouble. A change in the sound of the work, a movement that no longer completes its travel, a visible wobble or a new squeak are all useful warnings, and reporting them early keeps a small adjustment from becoming a major repair. We hand over with a simple inspection sheet, a spare parts list for the wearing components and clear guidance on what the owner can check and what should be left to the studio.
- Written schedule: inspection intervals and tasks defined for the environment and the level of public contact.
- Wearing parts list: bearings and consumables identified so replacements can be sourced before they are needed.
- Owner checks: a short visual routine the site team can perform and report on between service visits.
- Record keeping: a simple log of inspections and interventions that follows the work through its life.
- Studio support: a named route back to the makers for adjustment, repair or refurbishment.
Drive Systems in a Kinetic Stainless Steel Sculpture
The drive system determines how a kinetic work behaves, and the choice between wind, motor and a hybrid approach should follow the site and the intent. A wind driven piece is self sufficient, silent in its power source and responds directly to the weather, which gives it a life of its own, but it depends on the local wind and must be designed so it cannot be damaged by a storm. A motorised work offers controlled movement but adds systems that must be maintained.
Wind driven movement requires a careful study of the local regime. Too little sail area and the sculpture stands still for most of the year, which disappoints the client; too much and the structure and bearings are overloaded in a gale. We use local wind data to size the elements so that movement begins at a realistic speed and so that the design wind speed can be resisted safely, with mechanical limits to prevent over travel.
Motorised systems add a different set of decisions. The motor must be sized for the load, the speed must be slow enough to be safe and quiet, and the controls must include limits, overload protection and a fail safe behaviour if power is lost. Where a kinetic stainless steel sculpture moves automatically, the programme can be timed to the hours the site is busy, which saves energy and reduces wear.
Whichever system is chosen, the design must consider what happens when it fails. A wind driven element should settle safely; a motorised element should stop in a defined position and be resettable. Planning for failure is not pessimism but the mark of engineering discipline, and it is what allows a kinetic stainless steel sculpture to be trusted in a public place for decades.
Frequently Asked Questions About Kinetic Stainless Steel Sculpture
Will it move in a light breeze?
The sail area and the bearing friction are tuned together so that the element begins to move at the wind speed typical of the site, which is why local wind data is part of the design brief.
What happens in a storm?
The structure and the bearings are designed for the site's design wind speed, and mechanical limits prevent over travel, so the work either continues to move safely or settles into a safe position.
Can it be motorised instead of wind driven?
Yes, and motorised works offer controlled movement at chosen times, but they add power supply, control and safety systems that must be designed and maintained.
How often do bearings need replacing?
That depends on the load, the speed and the environment, which is why the design specifies serviceable bearings and a realistic inspection interval rather than assuming indefinite life.
Is movement safe around children?
It can be, provided the mechanism is enclosed, the gaps are sized to prevent trapping and the forces are limited by the design, all of which are established at the concept stage.

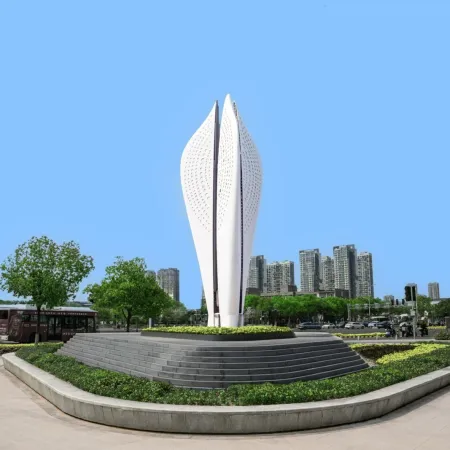

How we engineer moving works is described in the services overview, and a wind driven installation built around movement is Sailing Competition. A smaller kinetic device with the same engineering discipline is Fish Swarm.
Tell us about the wind at your site and the movement you have in mind, and we will show you how it can be engineered. Built with proper bearings, real balance and a maintenance plan, a kinetic stainless steel sculpture becomes the liveliest thing in the square without ever becoming a liability.
